Not sure how to measure your filter cartridge?
Check out this guide.
Compatible Replacement for Pentair R173205. Cross-References Pleatco PA75, Unicel C-7475 and Filbur FC-0635.
SKU XLS-772 4PACK · UPC 810625024950
Confirm your fit

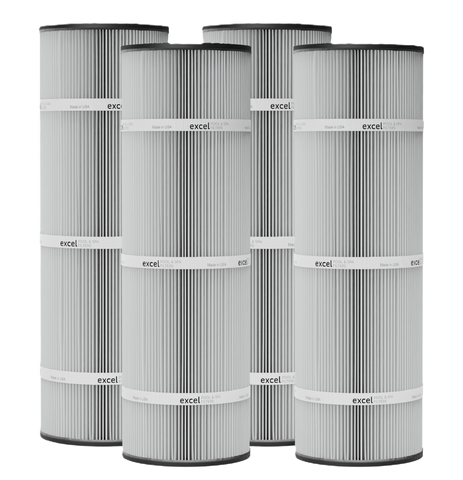

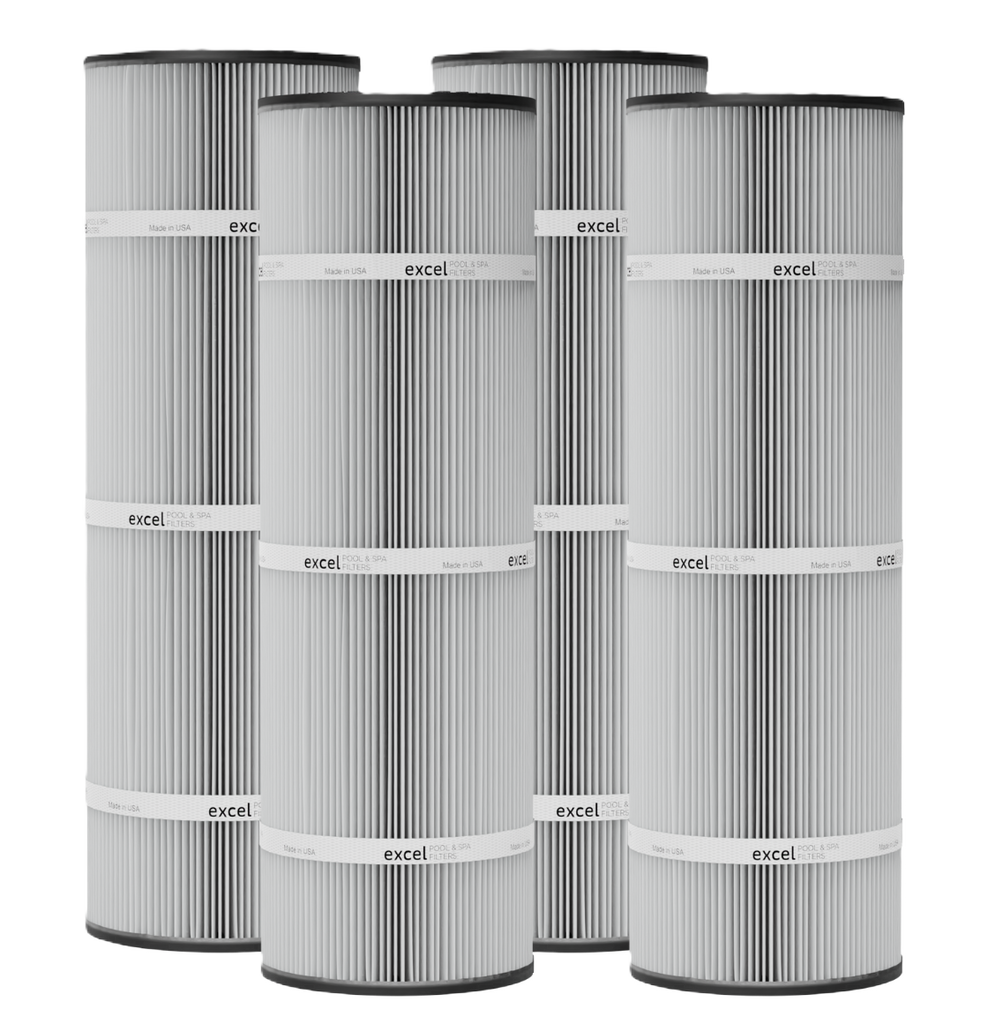

The XLS-772 4-pack is a replacement cartridge set for the Pentair/American Commander 75, Hayward Star-Clear C750, American Commander 100 and Pentair/American Premier 75, plus 3 more filters listed under Compatibility. It replaces Pentair R173205 / 57007400 and Hayward CX750RE / CX1000RE, along with aftermarket Pleatco PCM75-4 / ULTRA-A12, Unicel C-7475 / C-7676 and Filbur FC-0635 / FC-1250. XLS-772 has 75.3 sq ft of filter media per cartridge. Its fit with American Commander 100 (rated 100 sq ft per cartridge), Hercules II 100 (rated 100 sq ft per cartridge), Hayward Star-Clear 100 (rated 100 sq ft per cartridge) and Hayward C-1000 (rated 100 sq ft per cartridge) is a physical fit with smaller filtration area than those filters are rated for.
Each cartridge is 7" in diameter and 29 3/8" long with a 3" open end cap top and bottom, and carries 75.3 sq ft of filter media, 301.2 sq ft across the 4 cartridges in this pack.
We make every cartridge in Austin, Texas, and shipping is free.
Measure your old cartridge cap to cap, then across the widest pleat.
How to measure a cartridge →Measuring your old cartridge
A variance of ⅛" is normal. Anything larger usually means a different housing model — check the number printed on your old cartridge against the compatible parts list before ordering.
Match your filter housing below, click any part number to verify the fit, or paste your existing part number into the search box.
Filter housings and systems this cartridge fits
OEM and competitor cartridge part numbers this product replaces
The Perfect Fit Guarantee applies to the cross-references listed here. Brand names, models and part numbers identify compatibility only. If your housing is not listed, reach out to our team before ordering.
Can't find your part number? Look it up on the full pool filter cartridge cross-reference chart.
Still unsure after reading these? Send us the number stamped on your old cartridge and we will confirm the fit.
Find the part number printed on your old cartridge in the Compatibility tab. If you cannot read it, measure the outside diameter and the length, check both end caps, and compare them with the Specifications tab. A difference of about 1/8 inch is normal; more than that usually means a different filter model. Matching measurements alone do not prove a fit: some of our cartridges share a size and differ in filtration area or end caps.
It replaces R173205, PCM75-4, C-7475, FC-0635, CX750RE, CX1000RE, 57007400 and R173204. The Compatibility tab lists the rest.
It fits the Pentair/American Commander 75, Pentair/American Premier 75, Hayward Star-Clear C750 and Hayward Star-Clear 100. The Compatibility tab lists the others. Check the model on your filter tank before you order.
No. Excel Filters makes this cartridge in Austin, Texas. It is not made, sold or endorsed by Pentair; we use the name only to show which filters it fits.
Most pool and spa cartridges last one to two seasons, depending on how much the water is used and its chemistry. Rinse the cartridge monthly during heavy use, and replace it when cleaning no longer brings the flow back or the pleats show wear.
First check the part number on your old cartridge against the Compatibility tab: most fit problems come from ordering for a different filter model. If you still have a question, call us at (888) 532-2801 and we will help you find the right cartridge, before or after you order. Returns follow our standard return policy.
XLS-772 has 75.3 sq ft of filter media per cartridge. Its fit with American Commander 100 (rated 100 sq ft per cartridge), Hercules II 100 (rated 100 sq ft per cartridge), Hayward Star-Clear 100 (rated 100 sq ft per cartridge) and Hayward C-1000 (rated 100 sq ft per cartridge) is a physical fit with smaller filtration area than those filters are rated for.
